Grant Fittings is a reliable manufacturer and supplier located in Manila, Philippines, known for its top-notch Alloy Steel F1 Forged Fittings. With a strong focus on precision engineering and durability, Grant Fittings provides high-quality forged fittings that adhere to international standards for strength and reliability. Their products find applications across various sectors, including petrochemical, power generation, and oil & gas. With years of experience and a talented team, the company guarantees timely delivery, competitive pricing, and outstanding customer service. When it comes to dependable forged fittings in Manila, Grant Fittings is the go-to choice for Alloy Steel F1 components.
Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN : EN10253-1, EN10253-2
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated
Seamless Pipe 90° Short Radius Elbow Size: 1/2″~24″
ERW / Welded / Fabricated 90° Short Radius Elbow Size: 1/2″ (15 NB) to 48″ (1200NB)
Form: 90° Short Radius Elbow
90° Short Radius Elbows are typically made from durable materials like stainless steel, carbon steel, and alloys such as Duplex and Super Duplex, depending on the application requirements. These materials provide high tensile strength (500-900 MPa), yield strength (250-700 MPa), and elongation (20-30%), making them suitable for high-pressure and high-temperature environments. The short radius design ensures quick directional changes in compact spaces while maintaining adequate flow. These elbows offer excellent corrosion resistance, mechanical reliability, and are ideal for industries like oil and gas, chemical processing, and HVAC systems.
Stainless Steel 90° Short Radius Elbow : ASTM A403 WP316/316L, ASTM A403 WP304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel 90° Short Radius Elbow : ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Alloy Steel 90° Short Radius Elbow : ASTM A234, ASME SA234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91
Duplex Steel 90° Short Radius Elbow : ASTM A815, ASME SA815 UNS No S31803, S32205

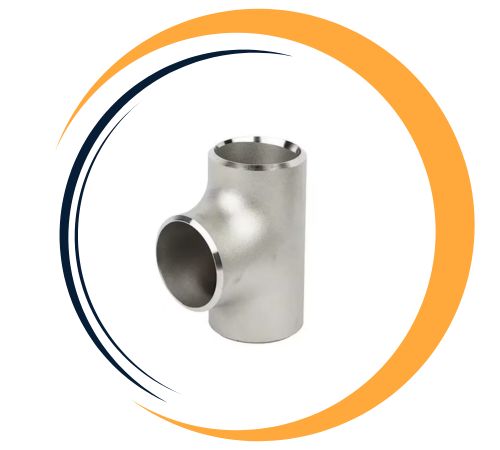

Super Duplex 90° Short Radius Elbow : ASTM A815, ASME SA815 UNS No S32750, S32950

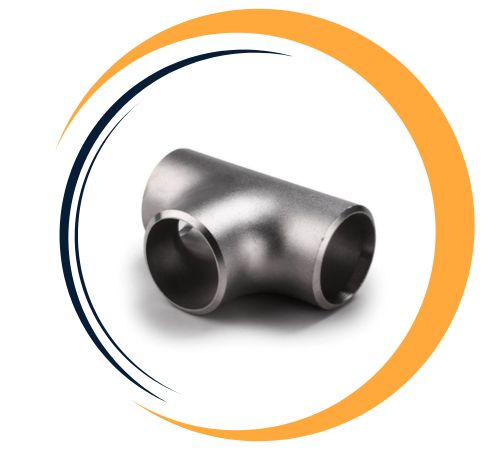

Nickel Alloy 90° Short Radius Elbow : ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.
Low Temperature Carbon Steel 90° Short Radius Elbow : ASTM A420 WPL3, A420 WPL6
Alloy Steel F1 Forged Fittings are primarily made up of chromium (Cr) and molybdenum (Mo), which give them exceptional strength, hardenability, and resistance to corrosion. The typical chemical makeup includes 0.10% carbon, 0.50–0.80% manganese, 0.44–0.65% molybdenum, and 0.50–0.80% chromium. These fittings boast impressive mechanical properties, featuring a tensile strength of about 415 MPa and a yield strength of 205 MPa, with an elongation of 22%. These characteristics make Alloy Steel F1 perfect for high-temperature and high-pressure applications, ensuring they perform reliably and resist stress-related damage.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose 90 Deg Short Redius Elbow from Grant Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
90° Short Radius Elbows provide several key advantages, including their ability to fit into compact spaces where standard long radius elbows may not be suitable. Their design allows for quick directional changes in piping systems, making them ideal for installations with limited room. Despite their tighter bend, these elbows offer reliable flow control and minimal pressure loss in low-velocity systems. Made from durable materials like stainless steel and alloys, they offer corrosion resistance and long-lasting performance. Widely used in industries such as HVAC, chemical processing, and plumbing, they ensure efficient and effective flow management.
Yes, custom sizes for 90 Deg Short Redius Elbow are available at Grant Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@grantfittings.com.
| NPS | O.D. D | Center-to-End A |
| 1 | 33.4 | 25 |
| 1 ¼ | 42.2 | 32 |
| 1½ | 48.3 | 38 |
| 2 | 60.3 | 51 |
| 2 ½ | 73 | 64 |
| 3 | 88.9 | 76 |
| 3 ½ | 101.6 | 89 |
| 4 | 114.3 | 102 |
| 5 | 141.3 | 127 |
| 6 | 168.3 | 152 |
| 8 | 219.1 | 203 |
| 10 | 273 | 254 |
| 12 | 323.8 | 305 |
| 14 | 355.6 | 356 |
| 16 | 406.4 | 406 |
| 18 | 457 | 457 |
| 20 | 508 | 508 |
| 22 | 559 | 559 |
| 24 | 610 | 610 |
Grant Fittings’ Alloy Steel F1 Forged Fittings are widely utilized in industries where high strength and resistance to heat and pressure are essential. This includes oil and gas refineries, power plants, chemical processing facilities, and marine engineering systems. The fittings are perfect for connecting pipelines, valves, and equipment in high-temperature and corrosive settings. Thanks to their toughness and mechanical stability, they are the preferred choice for steam lines, heat exchangers, and pressure vessels. Their precise design guarantees leak-proof performance, making them ideal for high-pressure fluid and gas transmission systems in demanding industrial environments.
