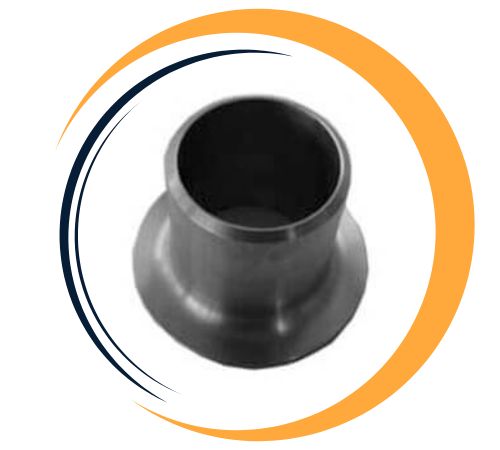

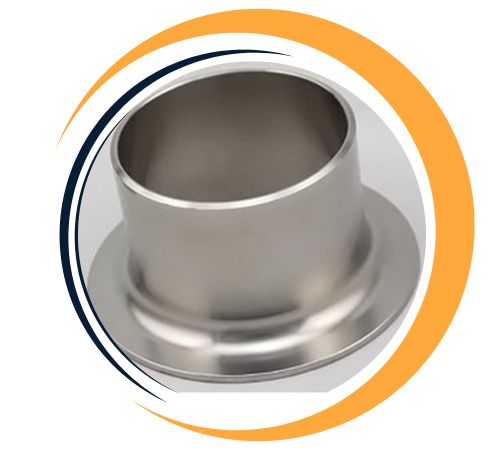

Grant Fittings is your go-to manufacturer and supplier of Long and Short Stub Bends, proudly based in Manila, Philippines. We specialize in high-quality stub bends that are expertly designed for efficient pipe routing and effective directional flow control. Our fittings ensure smooth transitions in flow direction while keeping pressure loss and stress on your piping system to a minimum. With options for both long and short radius designs, our stub bends are widely used across various industries, including oil and gas, petrochemical, water treatment, power generation, and construction. At Grant Fittings, we are committed to delivering products that meet international standards and specific industry requirements for quality and durability.
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/2″NB TO 36 “NB IN
Type : Seamless / ERW / Welded / Fabricated
Thickness : Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Form : Long Stub Ends, Pipe Stub Ends, Butt weld Long Stub Ends.
| Short pattern stub end Pipe Fittings size | Seamless Butt Weld Fittings: 1/2″ – 10″ Welded Butt Weld Fittings: 1/2″ – 48″ |
|---|---|
| Specifications | ASME B16.9 Short stub end |
| Short type stub end Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| lap joint stub end Short pattern Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Short stub ends Types | Seamless / ERW / Welded / Fabricated Pipe Fittings |
| Short spigot stub end Type | DN15-DN1200 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings |
| Application |
|
| Short type stub end Fittings | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Manufacturing process | Push, Press, Forge, Cast, etc. |

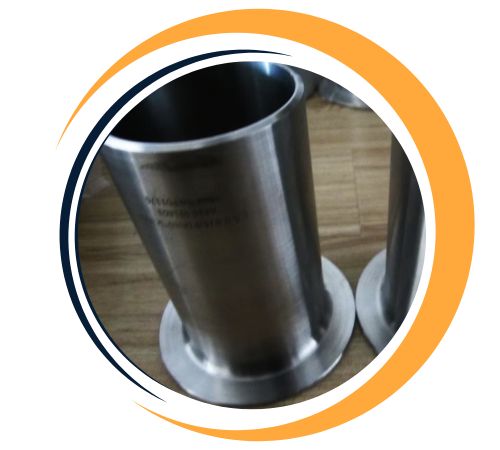

Our long and short stub bends are crafted from top-notch materials, such as stainless steel, carbon steel, alloy steel, and high-performance corrosion-resistant alloys. Long stub bends offer a gentle change in direction, making them perfect for reducing flow turbulence and mechanical stress, while short stub bends are ideal for tight spaces. Every fitting is manufactured in line with ASME and ASTM standards and goes through rigorous quality inspections to guarantee precision, strength, and a secure fit in any pipeline setup.
| Product (Type “C”) | Length (J) | NPS | Sch 5S Approx. Weight | O.D. | Sch 5S, Wall Thick. (T) | Sch 5S, Inside Dia. (I.D.) |
|---|---|---|---|---|---|---|
| 1 1/2″ | 2 | 1.5 | 0.29 | 1.9 | 0.065 | 1.77 |
| 1 1/4″ | 2 | 1.25 | 0.21 | 1.66 | 0.065 | 1.53 |
| 1″ | 2 | 1 | 0.19 | 1.315 | 0.065 | 1.185 |
| 1/2″ | 2 | 0.5 | 0.13 | 0.84 | 0.065 | 0.71 |
| 10″ | 5 | 10 | 7.48 | 10.75 | 0.134 | 10.482 |
| 12″ | 6 | 12 | 15 | 12.75 | 0.156 | 12.438 |
| 14″ | 6 | 14 | 19.2 | 14 | 0.156 | 13.688 |
| 16″ | 6 | 16 | 23.9 | 16 | 0.165 | 15.67 |
| 18″ | 6 | 18 | 28.5 | 18 | 0.165 | 17.67 |
| 2 1/2″ | 2.5 | 2.5 | 0.75 | 2.875 | 0.083 | 2.709 |
| 2″ | 2.5 | 2 | 0.44 | 2.375 | 0.065 | 2.245 |
| 20″ | 6 | 20 | 36.3 | 20 | 0.188 | 19.624 |
| 24″ | 6 | 24 | 56 | 24 | 0.218 | 23.564 |
| 3″ | 2.5 | 3 | 0.94 | 3.5 | 0.083 | 3.334 |
| 3/4″ | 2 | 0.75 | 0.14 | 1.05 | 0.065 | 0.92 |
| 4″ | 3 | 4 | 1.38 | 4.5 | 0.083 | 4.334 |
| 5″ | 3 | 5 | 2.06 | 5.563 | 0.109 | 5.345 |
| 6″ | 3.5 | 6 | 2.75 | 6.625 | 0.109 | 6.407 |
| 8″ | 4 | 8 | 3.88 | 8.625 | 0.109 | 8.407 |
| Product (Type “A“) | NPS | Length (F), Short | Diameter(G) | I.D. | Wall Thick. (T) | O.D. | Thickness (t) | XX Strong Wall Approx. Weights | XX Strong Wall, Inside Dia (I.D.) |
|---|---|---|---|---|---|---|---|---|---|
| 1 1/2″ | 1.5 | 2 | 2.875 | 1.338 | 0.281 | 1.9 | 0.281 | 2.98 | 1.1 |
| 1 1/2″ | 1.5 | 4 | 2.875 | 0.15 | 1.49 | 1.9 | 0.15 | 1.5 | 0.2 |
| 1 1/4″ | 1.25 | 2 | 2.5 | 1.16 | 0.25 | 1.66 | 0.25 | 2.52 | 0.896 |
| 1 1/4″ | 1.25 | 4 | 2.5 | 0.14 | 1.26 | 1.66 | 0.14 | 1.278 | 0.191 |
| 1″ | 1 | 2 | 2 | 0.815 | 0.25 | 1.315 | 0.25 | 1.76 | 0.599 |
| 1″ | 1 | 4 | 2 | 0.133 | 0.88 | 1.315 | 0.133 | 0.957 | 0.179 |
| 1/2″ | 0.5 | 2 | 1.375 | 0.464 | 0.188 | 0.84 | 0.187 | 0.68 | 0.252 |
| 1/2″ | 0.5 | 3 | 1.375 | 0.109 | 0.34 | 0.84 | 0.109 | 0.546 | 0.147 |
| 10″ | 10 | 5 | 12.75 | 8.5 | 1.125 | 10.75 | 1.125 | – | – |
| 10″ | 10 | 10 | 12.75 | 0.365 | 54 | 10.75 | 0.365 | 9.75 | 0.5 |
| 12″ | 12 | 6 | 15 | 10.126 | 1.312 | 12.75 | 1.312 | – | – |
| 12″ | 12 | 10 | 15 | 0.375 | 64.5 | 12.75 | 0.375 | 11.75 | 0.5 |
| 14″ | 14 | 12 | 16.25 | 0.375 | 84 | 14 | 0.375 | 13 | 0.5 |
| 16″ | 16 | 12 | 18.5 | 0.375 | 98 | 16 | 0.375 | 15 | 0.5 |
| 18″ | 18 | 12 | 21 | 0.375 | 136 | 18 | 0.375 | 17 | 0.5 |
| 2 1/2″ | 2.5 | 2.5 | 4.125 | 2.125 | 0.375 | 2.875 | 0.375 | 8.8 | 1.771 |
| 2 1/2″ | 2.5 | 6 | 4.125 | 0.203 | 4.4 | 2.875 | 0.203 | 2.323 | 0.276 |
| 2″ | 2 | 2.5 | 3.625 | 1.689 | 0.343 | 2.375 | 0.343 | 6.1 | 1.503 |
| 2″ | 2 | 6 | 3.625 | 0.154 | 3.05 | 2.375 | 0.154 | 1.939 | 0.218 |
| 20″ | 20 | 12 | 23 | 0.375 | 157 | 20 | 0.375 | 19 | 0.5 |
| 3 1/2″ | 3.5 | 3 | 5.5 | – | – | 4 | – | 15.5 | 2.728 |
| 3 1/2″ | 3.5 | 6 | 5.5 | 0.226 | 7.75 | 4 | 0.226 | 3.364 | 0.318 |
| 3″ | 3 | 2.5 | 5 | 2.624 | 0.438 | 3.5 | 0.438 | 9.8 | 2.3 |
| 3″ | 3 | 6 | 5 | 0.216 | 6.5 | 3.5 | 0.216 | 2.9 | 0.3 |
| 3/4″ | 0.75 | 2 | 1.688 | 0.612 | 0.219 | 1.05 | 0.218 | 0.94 | 0.434 |
| 3/4″ | 0.75 | 3 | 1.688 | 0.113 | 0.47 | 1.05 | 0.113 | 0.742 | 0.154 |
| 4″ | 4 | 3 | 6.188 | 3.438 | 0.531 | 4.5 | 0.531 | 19.3 | 3.152 |
| 4″ | 4 | 6 | 6.188 | 0.237 | 9.65 | 4.5 | 0.237 | 3.826 | 0.337 |
| 5″ | 5 | 3 | 7.313 | 4.313 | 0.625 | 5.563 | 0.625 | 32.66 | 4.063 |
| 5″ | 5 | 8 | 7.313 | 0.258 | 16.33 | 5.563 | 0.258 | 4.813 | 0.375 |
| 6″ | 6 | 3.5 | 8.5 | 5.187 | 0.719 | 6.625 | 0.718 | 45.26 | 4.897 |
| 6″ | 6 | 8 | 8.5 | 0.28 | 22.63 | 6.625 | 0.28 | 5.761 | 0.432 |
| 8″ | 8 | 4 | 10.625 | 6.813 | 0.906 | 8.625 | 0.906 | 59.71 | 6.875 |
| 8″ | 8 | 8 | 10.625 | 0.322 | 34.12 | 8.625 | 0.322 | 7.625 | 0.5 |
Grant Fittings supplies long and short stub bends all over the Philippines, catering to the needs of complex piping systems in both industrial and infrastructure projects. Whether you’re dealing with high-pressure fluid transport, chemical processing, or clean water systems, our stub bends promise reliable performance and a long service life. With a solid reputation for consistent quality, customization, and timely delivery, Grant Fittings remains a trusted partner for stub bend solutions across a diverse range of sectors.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Long and Short Stub Bend from Grant Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Long Stub and Short Stub Bends offer several advantages in piping systems. They provide superior strength and durability, making them ideal for high-pressure and high-temperature applications. These bends are designed to minimize turbulence and flow resistance, ensuring efficient fluid or gas movement. Their corrosion resistance, especially when made from materials like stainless steel, ensures long-lasting performance in harsh environments. Additionally, they are easy to install and maintain, with reduced risk of leakage. Versatile and reliable, Long and Short Stub Bends are widely used in industries like oil and gas, chemical processing, and power generation.
Yes, custom sizes are available for Long and Short Stub Bend to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@grantfittings.com.
Long Stub and Short Stub Bends are commonly used in piping systems across various industries, including oil and gas, chemical processing, power generation, and water treatment. These bends are essential for creating smooth directional changes in pipes while maintaining flow efficiency. Long Stub Bends are ideal for large-diameter pipes, offering better support and flexibility, while Short Stub Bends are suited for space-constrained areas. Both types provide excellent resistance to high pressures, temperatures, and corrosive environments, ensuring reliability in critical applications such as steam lines, refineries, and industrial cooling systems.
