Grant Fittings is a leading manufacturer and supplier of high-quality pipe fittings based in Manila, Philippines. Specializing in a wide range of materials, including Alloy 20 pipe fittings, we offer durable, corrosion-resistant solutions tailored for industries like chemical, pharmaceutical, and food processing. Our Alloy 20 fittings are designed to withstand harsh environments, ensuring reliability and performance. With a commitment to excellence, Grant Fittings delivers top-tier products and services to meet the needs of our global clients.
Specifications ASTM B366 / ASME SB366
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, MSS SP-79
Size 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Type Seamless / Welded / Fabricated
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Grade 20 UNS (N08020), DIN (2.4660)
Alloy 20 pipe fittings are made from a corrosion-resistant alloy primarily consisting of 32-38% nickel, 19-21% chromium, 3-4% molybdenum, and small amounts of iron, copper, and other elements. This composition provides excellent resistance to sulfuric acid, pitting, and crevice corrosion. The mechanical properties of Alloy 20 include a tensile strength of 75-85 ksi, yield strength of 30-40 ksi, and elongation of 30% in 2 inches. These fittings also exhibit good fatigue and thermal-fatigue strength, making them ideal for applications in harsh, corrosive environments.
| Grade | Ni | C | Mn | P | S | Si | Cr | Nb | Mo | Cu |
| Alloy 20 | 32 – 38 | 0.02 max | 1 – 2 | 0.02 max | 0.005 max | 0.7 max | 19 – 21 | 0.1 – 0.3 | 2 – 3 | 3 – 4 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy 20 | 8.1 g/cm3 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 | Psi – 35,000, MPa – 241 | 30 % |

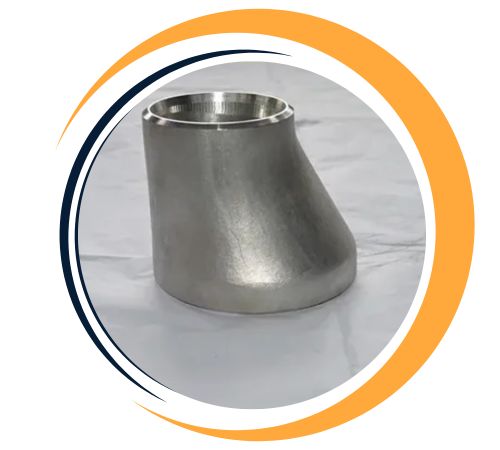

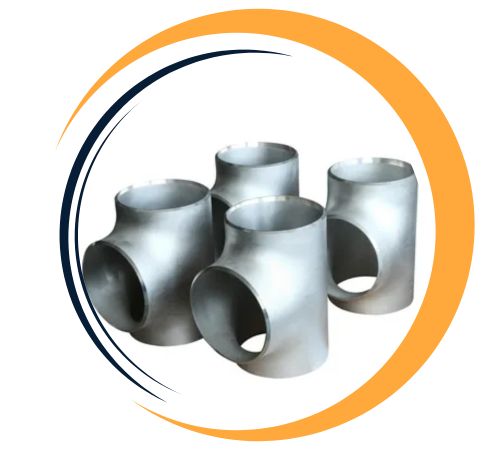

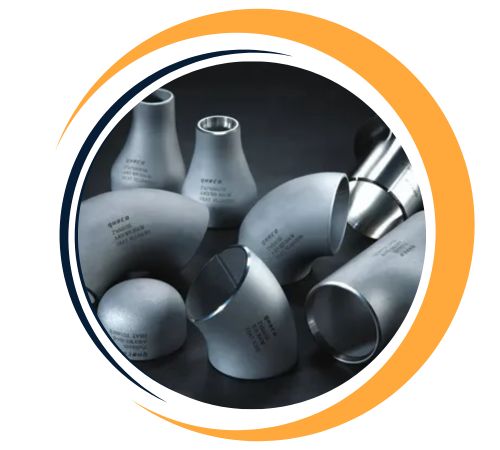

Grant Fittings stands out as a top-notch manufacturer and supplier of Alloy 20 Pipe Fittings right in the heart of Manila, Philippines. They focus on providing high-performance fittings like elbows, tees, reducers, and caps that cater to the rigorous demands of various industries, including chemical processing, pharmaceuticals, food, and marine applications. Crafted to withstand aggressive corrosion, particularly from sulfuric acid, Grant Fittings’ Alloy 20 fittings are produced in accordance with ASTM B366 and ASME B16.9 standards. With a reputation for precision manufacturing, reliable delivery, and consistent quality, they play a vital role in supporting essential piping projects throughout the Philippines with their trustworthy Alloy 20 solutions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | UNS | WNR. | AFNOR | EN |
| Alloy 20 | N08020 | 2.4660 | Z2NCUD31-20AZ | NiCr20CuMo |
The Alloy 20 pipe fittings are composed of a nickel-iron-chromium alloy, enhanced with copper and molybdenum, which grants them remarkable resistance to corrosion, pitting, and stress corrosion cracking. This specific alloy excels in environments rich in sulfuric acid and chlorides, making it the go-to choice for challenging chemical services. Typically, these fittings boast a tensile strength of around 620 MPa and outstanding mechanical stability. Grant Fittings takes pride in ensuring that each Alloy 20 fitting undergoes rigorous testing for dimensional accuracy, strength, and corrosion resistance, guaranteeing components that align with international quality and safety standards.
Alloy 20 pipe fittings offer several key advantages, including exceptional resistance to corrosion, particularly in acidic environments like sulfuric acid. Their high nickel content enhances resistance to chloride stress corrosion cracking, while the chromium and molybdenum provide excellent protection against pitting and crevice corrosion. These fittings maintain strength and durability even at high temperatures. Alloy 20 also exhibits good weldability and formability, making it versatile for various industrial applications, such as chemical processing, pharmaceuticals, and food production. Its long-term reliability and resistance to degradation reduce maintenance costs.
Yes, custom sizes for Alloy 20 Pipe Fittings are available at Grant Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@grantfittings.com.
You’ll find Alloy 20 pipe fittings from Grant Fittings being utilized across chemical processing plants, petrochemical facilities, food and beverage sectors, and marine engineering projects. These fittings are perfectly suited for piping systems that transport corrosive media under moderate to high temperatures and pressures. Their reliability in harsh environments not only helps cut down on maintenance costs but also extends the lifespan of the systems. Grant Fittings also provides custom sizing, a variety of schedules, and prompt delivery, ensuring that they meet the unique needs of their clients.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
