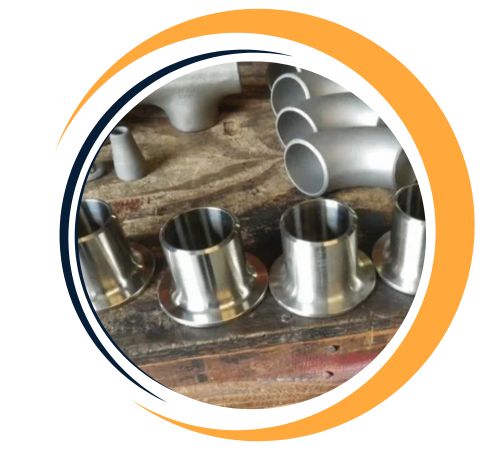

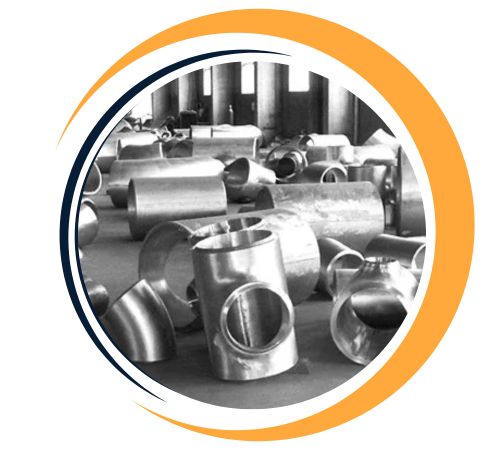

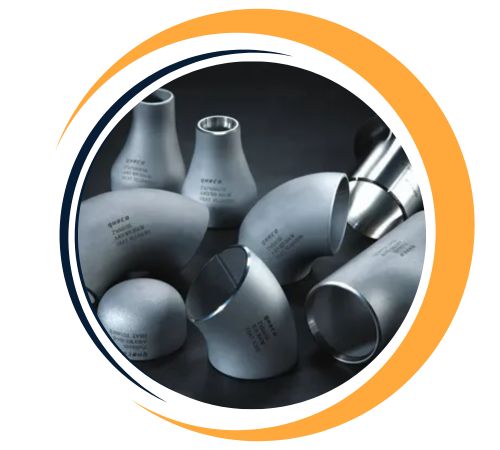

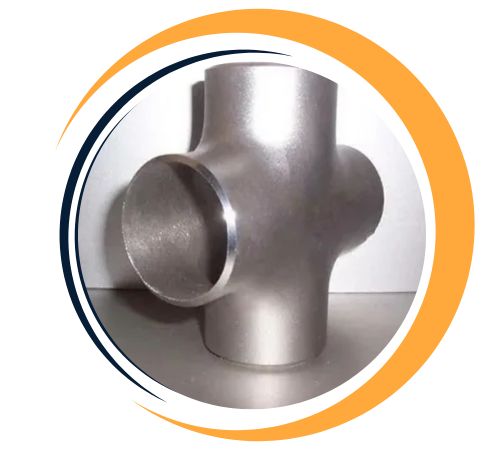

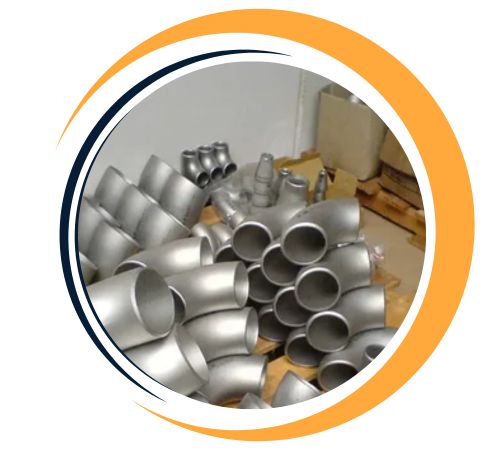

Grant Fittings, located in Manila, Philippines, has earned a solid reputation as a reliable manufacturer and supplier of top-notch industrial components, including Inconel Pipe Fittings. Known for their precision engineering and durability, they strictly adhere to international standards, ensuring that their piping solutions are both dependable and resistant to corrosion, making them perfect for tough industrial settings. Their Inconel Pipe Fittings are crafted to perform exceptionally well under high pressures, extreme temperatures, and harsh chemical environments. With a strong commitment to product quality, consistency, and customer satisfaction, Grant Fittings has become a go-to partner for engineers, fabricators, and industrial clients, both locally and around the world.
| Specification | ASTM B366, ASTM SB 366, ASTM B564, ASME SB564 |
| Grade | Inconel 600 (UNS N06600, Alloy 600, 2.4816), Inconel 601 (UNS N06601, Alloy 601, 2.4851), Inconel 625 (UNS N06625, Alloy 625, 2.4856), Inconel 800 (UNS N08800, Alloy 800) |
| Type | Seamless / Welded / Fabricated |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Range | ½”NB to 24″NB in Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
Inconel is a family of nickel-chromium-based superalloys celebrated for their outstanding resistance to oxidation, corrosion, and high-temperature creep. These Pipe Fittings boast impressive mechanical strength, toughness, and stability, even when faced with thermal cycling and aggressive chemical conditions. Inconel alloys maintain their shape, resist pitting and crevice corrosion, and offer long-lasting reliability in critical piping systems. Their unique combination of high-temperature performance and corrosion resistance makes Inconel Pipe Fittings perfect for demanding industrial applications.
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | – | 5.0 max | 58.0 min | 20.0 – 23.0 |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | – | 50.00 – 55.00 | 17.00 – 21.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
Grant Fittings is a leading supplier of Inconel Pipe Fittings in Manila, Philippines. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WNR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb |
| Inconel 718 | 2.4668 | N07718 | – | – | – | – | – |
Inconel Pipe Fittings from Grant Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| NOMINAL PIPE SIZE | ALL FITTINGS | ALL FITTINGS | 180 DEG RETURN BENDS | REDUCERS | ELBOWS AND TEES | 180 DEG RETURN BENDS | CAPS |
|---|---|---|---|---|---|---|---|
| NPS | ID at End (1), (3), (4) | OD at Bevel (1), (2) | Centre-to- Centre O | Overall Length H | Centre -to- End Dimension A, B, C, M | Alignment of Ends U | Overall Length E |
| ½ to 2½ | 0.003 | 0.006 -0.003 | 0.025 | 0.006 | 0.006 | 0.003 | 0.012 |
| 3 to 3 ½ | 0.006 | 0.006 | 0.025 | 0.006 | 0.006 | 0.003 | 0.012 |
| 4 | 0.006 | 0.006 | 0.025 | 0.006 | 0.006 | 0.003 | 0.012 |
| 5 to 8 | 0.006 | 0.009 -0.006 | 0.025 | 0.006 | 0.006 | 0.003 | 0.025 |
| 10 to 18 | 0.012 | 0.016 -0.012 | 0.038 | 0.009 | 0.009 | 0.006 | 0.025 |
| 20 to 24 | 0.019 | 0.025 -0.019 | 0.038 | 0.009 | 0.009 | 0.006 | 0.025 |
| 26 to 30 | 0.019 | 0.025 -0.019 | … | 0.019 | 0.012 | … | 0.038 |
| 32 to 48 | 0.019 | 0.025 -0.019 | … | 0.019 | 0.019 | … |
Inconel pipe fittings offer numerous advantages, making them ideal for demanding environments. Their exceptional resistance to oxidation, corrosion, and high temperatures ensures durability in extreme conditions. These fittings maintain mechanical strength and stability across a wide temperature range, reducing the risk of deformation or failure. Inconel’s ability to withstand high-pressure environments makes it suitable for critical applications in aerospace, chemical processing, and power plants. Additionally, the alloy resists cracking under thermal and mechanical stress, enhancing reliability and longevity. Low maintenance requirements further contribute to their cost-effectiveness over time.
Nominal Pipe Size | 45° Elbow | 90° Elbow | OD | 180° Returns | ||||
(inch.) | LR | SR | LR | LR | ||||
Radius (inch.) | Center to Face (inch.) | Center to Face (inch.0) | Center to Face (inch.0) | (inch) | (millimeter) | Back to face (inch.) | Center to Center (inch.) | |
1/2 | 5/8 | – | 1 1/2 | 0.0840 | 21.03 | 1 7/8 | 2 | |
3/4 | 7/16 | – | 1 1/8 | 1.0050 | 26.07 | 1 11/16 | 2 1/4 | |
1 | 7/8 | 1 | 1 1/2 | 1.0315 | 33.04 | 2 3/16 | 3 | |
1 1/4 | 1 | 1 1/4 | 1 7/8 | 1.0660 | 42.02 | 2 3/4 | 3 3/4 | |
1 1/2 | 3 | 1 1/8 | 1 1/2 | 2 1/4 | 1.0900 | 48.03 | 3 1/4 | 4 1/2 |
2 | 4 | 1 3/8 | 2 | 3 | 2.0375 | 60.03 | 4 3/16 | 6 |
2 1/2 | 5 | 1 3/4 | 2 1/2 | 3 3/4 | 2.0875 | 73.00 | 5 3/16 | 7 1/2 |
3 | 6 | 2 | 3 | 4 1/2 | 3.0500 | 88.09 | 6 1/4 | 9 |
3 1/2 | 7 | 2 1/4 | 3 1/2 | 5 1/4 | 4.0000 | 101.06 | 7 1/4 | 10 1/2 |
4 | 8 | 2 1/2 | 4 | 6 | 4.0500 | 114.03 | 8 1/4 | 12 |
5 | 10 | 3 1/8 | 5 | 7 1/2 | 5.0563 | 141.03 | 10 5/16 | 15 |
6 | 12 | 3 3/4 | 6 | 9 | 6.0625 | 168.03 | 12 5/16 | 18 |
8 | 12 | 5 | 8 | 12 | 8.0625 | 219.01 | 16 5/16 | 24 |
10 | 15 | 6 1/4 | 10 | 15 | 10.0750 | 273.01 | 20 3/8 | 30 |
12 | 18 | 7 1/2 | 12 | 18 | 12.0750 | 323.09 | 24 3/8 | 36 |
Yes, custom sizes for Inconel Pipe Fittings are available at Grant Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@grantfittings.com.
You’ll find Inconel Pipe Fittings in a variety of sectors, including aerospace, petrochemical, chemical processing, power generation, and marine industries. They’re ideal for pipelines, valves, heat exchangers, and process systems that deal with high pressures, elevated temperatures, and corrosive substances. Thanks to their superior mechanical strength, thermal stability, and corrosion resistance, these fittings ensure safe and efficient fluid transport. They significantly enhance operational reliability, durability, and performance, making them essential for industrial applications that require high-performance, corrosion-resistant piping solutions.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
