Grant Fittings, located in Manila, Philippines, stands out as a top manufacturer and supplier of high-quality industrial components, particularly their Stainless Steel Buttweld Fittings. Known for their precision engineering and rigorous quality control, Grant Fittings delivers reliable and durable solutions for industries that need corrosion-resistant and high-performance piping components. Their Stainless Steel Buttweld Fittings are expertly crafted to endure high pressures, elevated temperatures, and harsh chemical environments. By sticking to international standards and focusing on quality and customer satisfaction, Grant Fittings guarantees that each product performs exceptionally well, making them a go-to choice for engineers, fabricators, and industrial projects both locally and around the world.
| Grade | SS 304 | Stainless Steel 304 | UNS S30400 |
| Standard | ASTM A403 / ASME SA403 |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
| Thickness | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
| Size | 1/2″ NB – 48″ NB |

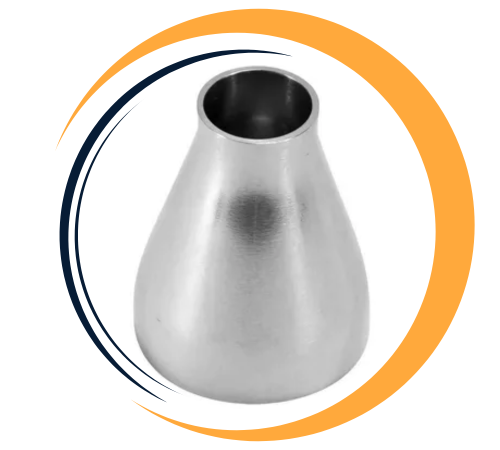

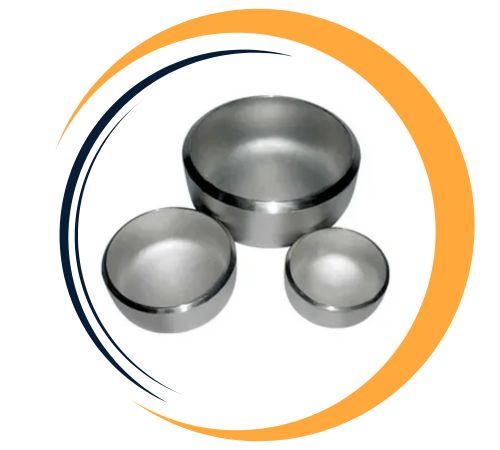

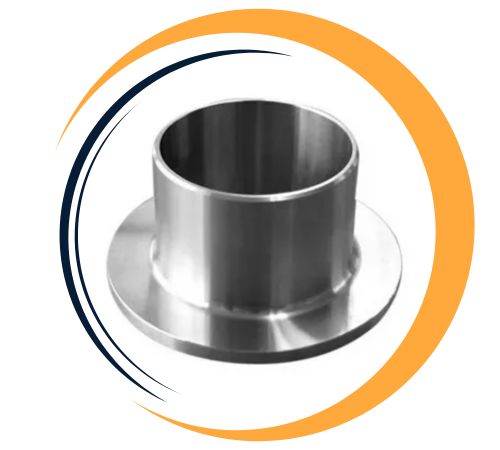

| Form | 90 Elbow, 45 Elbow, Long Radius Elbow, Short Radius Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Unequal Tee, Lateral Tee, Cross, Bends 1.5d, 3d, 5d, 10d, U bend, 180 Deg Bend, Short Stub End, Long stub end, End Cap, Dish Cap |
| Schedule | SCH 5 To SCH XXS |
| Type | Seamless / Welded / Fabricated |
These Stainless Steel Buttweld Fittings are made from top-grade austenitic or alloy stainless steels, offering outstanding corrosion resistance, strength, and durability. They boast high tensile strength, good ductility, and remarkable resistance to pitting, crevice corrosion, and oxidation, even in tough chemical, marine, and high-temperature settings. The buttweld design promotes smooth fluid flow and minimizes turbulence within pipelines, all while maintaining structural integrity under challenging conditions. These mechanical and chemical properties make them perfect for critical piping systems that demand long-term reliability and safe operation.
| Grade | C | Mn | Si | P | S | Cr | Ni | N |
|---|---|---|---|---|---|---|---|---|
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | 8 – 11 | – |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | 8 – 13 | – |
| SS 304H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | 8 – 10.5 | – |
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 304 | 75 | 30 | 40 | 201 | 92 |
| 304L | 70 | 25 | 40 | 201 | 92 |
| 304H | 75 | 30 | 40 | 201 | 92 |
Grant Fittings is a leading supplier of Stainless Steel Buttweld Fittings in Manila, Philippines. We offer an extensive range of Nickel Alloy 201 Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST |
|---|---|---|---|---|---|---|---|
| SS 304 | S30400 | 1.4301 | Z7CN18‐09 | X5CrNi18-10 | SUS 304 | 304S31 | 08Х18Н10 |
| SS 304L | S30403 | 1.4306/1.4307 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 | SUS 304L | 304S11 | 03Х18Н11 |
| SS 304H | S30409 | 1.4301 | – | – | – | – | – |
Stainless Steel Buttweld Fittings from Grant Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
The stainless steel buttweld fitting provides excellent corrosion resistance, and durability in harsh environments. They provide a seamless, smooth surface, reducing turbulence and pressure loss in pipes. These materials are ideal for high-pressure and thermal systems and maintain structural integrity by eliminating frequent joint movements. They are easy to install, cost effective and require little maintenance. Because of their high tensile strength, they resist deformation and withstand mechanical stresses. Available in a variety of sizes and configurations, they are suitable for a variety of industries, including chemical, oil and gas. Their aesthetic finish also makes them suitable for architectural use.
| Nominal PipeSize | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| (inches) | – | Long Radius | Short Radius | Long Radius | Long Radius | |||
| (mm) | (inches) | Center to Face (inches) | Center to Face (inches) | Center to Face (inches) | Radius (inches) | Center to Center (inches) | Back to face (inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | 7/16 | 2 1/4 | 1 11/16 | ||
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Yes, custom sizes for Stainless Steel Buttweld Fittings are available at Grant Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@grantfittings.com.
Stainless Steel Buttweld Fittings find their place in various industries, including chemical processing, petrochemical, oil and gas, marine, and pharmaceuticals. They are ideal for high-pressure pipelines, heat exchangers, desalination plants, and process piping systems that handle corrosive or high-temperature fluids. Their exceptional corrosion resistance, mechanical strength, and extended service life ensure safe and efficient fluid transport. These fittings significantly enhance the operational efficiency, safety, and durability of industrial infrastructure, making them essential in applications where performance, reliability, and safety are paramount.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
