Grant Fittings is a reliable manufacturer and supplier located in Manila, Philippines, known for its top-notch Alloy Steel F1 Forged Fittings. With a strong focus on precision engineering and durability, Grant Fittings provides high-quality forged fittings that adhere to international standards for strength and reliability. Their products find applications across various sectors, including petrochemical, power generation, and oil & gas. With years of experience and a talented team, the company guarantees timely deliveries, competitive pricing, and outstanding customer service. When it comes to dependable forged fittings in Manila, Grant Fittings stands out as the go-to choice for Alloy Steel F1 components.
| 20 Pipe Fittings Specifications | ASTM B366/ ASME SB366 |
|---|---|
| Alloy 20 Pipe Fittings size | 20 Seamless Butt Weld Fittings : 1/2″ – 10″ 20 Welded Butt Weld Fittings : 1/2″ – 48″ |
| Alloy 20 Pipe Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Alloy 20 Buttweld Fittings Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| 20 Buttweld Pipe FittingsType | DN15-DN1200 |
| ASTM B366 20 Buttweld Fitting Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM B366 Alloy 20 Pipe Fitting |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM B366 20 Buttweld Fitting |
| ASTM B366 20 Buttweld Fittings Manufacturing process | Push, Press, Forge, Cast, etc. |
| Alloy 20 Buttweld Pipe Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| SA 366 20 Pipe Fittings Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |

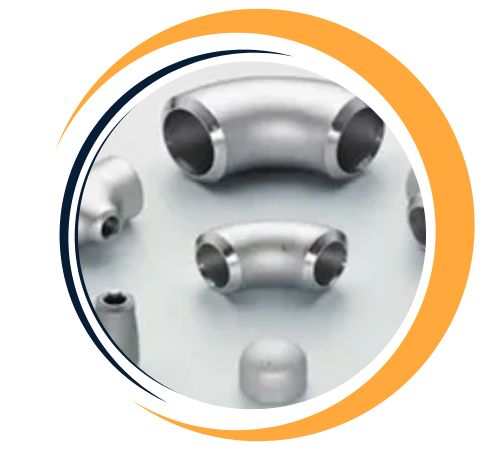

| Specialized manufacturer of | Alloy UNS N08020, 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
Alloy 20 Buttweld Fittings are made from a nickel-chromium-molybdenum-based alloy designed for excellent corrosion resistance, particularly in acidic environments. The composition includes approximately 20% chromium, 29-34% nickel, 3-4.5% molybdenum, and small amounts of copper, iron, and manganese. This combination provides resistance to sulfuric acid, phosphoric acid, and other corrosive substances. The mechanical properties of Alloy 20 include a tensile strength of 45-70 ksi, a yield strength of 25 ksi, and an elongation of 30%. These fittings are highly durable and suitable for industries requiring high resistance to stress and corrosion.
| Grade | C | Mn | Si | S | Cu | Ni | Cr | Fe | Mo | P |
| Alloy 20 | 0.07 max | 2.00 max | 1.00 max | 0.035 max | 3.00 – 4.00 | 32.00 – 38.00 | 19.00 – 21.00 | 29.85 min* | 2.00 – 3.00 | 0.045 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy 20 | 8.1 g/cm3 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 | Psi – 35,000, MPa – 241 | 30 % |
Alloy Steel F1 Forged Fittings are primarily made up of chromium (Cr) and molybdenum (Mo), which give them exceptional strength, hardenability, and resistance to corrosion. The typical chemical makeup includes 0.10% carbon, 0.50–0.80% manganese, 0.44–0.65% molybdenum, and 0.50–0.80% chromium. These fittings boast impressive mechanical properties, featuring a tensile strength of about 415 MPa and a yield strength of 205 MPa, with an elongation of 22%. These characteristics make Alloy Steel F1 perfect for high-temperature and high-pressure applications, ensuring they perform reliably and resist stress-related damage over time.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | EN | AFNOR |
| Alloy 20 | 2.4660 | N08020 | NiCr20CuMo | Z2NCUD31-20AZ |
Alloy 20 Buttweld Fittings from Grant Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Alloy 20 Buttweld Fittings offer several key advantages, making them ideal for demanding applications. Their exceptional corrosion resistance, particularly to sulfuric acid and other aggressive chemicals, ensures long-lasting durability in harsh environments. Alloy 20 provides excellent mechanical properties, such as high strength, enhanced stress corrosion cracking resistance, and superior weldability. These fittings are highly resistant to pitting and crevice corrosion, making them ideal for industries like chemical processing, pharmaceuticals, and food processing. Their reliability and performance in extreme conditions reduce maintenance costs and extend the lifespan of piping systems.
| Standard Code | Standard Name |
| ANSI ASME SA-366 | Forged Durimet pipe fittings |
| ANSI ASME B16.9 | Factory-Made wrought steel pipe fittings |
| ANSI ASME B16.28 | Wrought steel butt-welding short radius elbows and returns |
| ISO 5251 | Alloy butt-welding fittings |
| MSS SP-43 | Wrought Alloy butt-welding fittings |
| MSS SP-75 | Forging butt-welding fittings |
| German Steel Pipe Fittings Standard | |
| DIN 2605 | Steel butt-welding pipe fittings.elbows and bends |
| DIN 2615 | Steel butt-welding pipe fittings.tees |
| DIN 2616 | Steel butt-welding pipe fittings.reducers |
| DIN 2617 | Steel butt-welding pipe fittings.caps |
| Japanese Steel Pipe Fittings Standard | |
| JIS B2311 | Universal steel butt-welding pipe fittings |
| JIS B2312 | Steel butt-welding pipe fittings |
| JIS B2313 | Steel plate butt-welding pipe fittings |
| Other Steel Pipe Fittings Standard | |
| EN 1025 | 3 Butt-welding pipe fittings |
Yes, custom sizes for Alloy 20 Buttweld Fittings are available at Grant Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@grantfittings.com.
Grant Fittings’ Alloy Steel F1 Forged Fittings are widely utilized in industries where high strength and resistance to heat and pressure are essential. This includes oil and gas refineries, power plants, chemical processing facilities, and marine engineering systems. The fittings are perfect for connecting pipelines, valves, and equipment in high-temperature and corrosive settings. Thanks to their toughness and mechanical stability, they are the preferred choice for steam lines, heat exchangers, and pressure vessels. Their precise design guarantees leak-proof performance, making them ideal for high-pressure fluid and gas transmission systems in demanding industrial environments.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
