Grant Fittings, located in Manila, Philippines, has earned a solid reputation as a reliable manufacturer and supplier of top-notch piping solutions, including the impressive Super Duplex Steel S32760 Pipe Fittings. These fittings are celebrated for their precision engineering and remarkable durability, making them perfect for demanding industrial settings. Grant Fittings takes pride in ensuring that every S32760 pipe fitting adheres to strict international standards, providing exceptional resistance to corrosion, pitting, and stress corrosion cracking. Commonly found in the oil and gas, chemical, petrochemical, and marine sectors, these fittings create leak-proof, long-lasting connections that guarantee safety, efficiency, and reliability even in high-pressure, high-temperature, and aggressive service conditions.
| Specification | ASTM A815/ ASME SA815 |
| Standard | EN, ISO, DIN, JIS, NPT |
| Dimension Standard | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Type Of Dimension | BS1640, EN 10253 – 4, DIN 2605, JIS B2312, ANSI B16.9, MSS SP-75, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2313 |
| Type | Seamless / Welded / Fabricated |
| Pressure-Temperature Class | 150LB, 300LB, 600LB, 1500LB, 2500LB. |
| Schedule | Schedule 5 TO Schedule XXS. |
The Super Duplex Steel S32760 Pipe Fittings are crafted from iron, featuring 25–26% chromium, 6–7% nickel, 3–5% molybdenum, along with trace amounts of nitrogen and manganese. This unique blend results in a balanced duplex microstructure of austenite and ferrite, giving these fittings outstanding mechanical properties. They boast a tensile strength of 900–1050 MPa, yield strength of 600–750 MPa, and an elongation of 25–30%. With exceptional hardness, toughness, and fatigue resistance, these fittings are perfectly suited for high-pressure, high-temperature, and highly corrosive environments, all while maintaining their structural integrity and long-term reliability.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32760 | 0.05 max | 1.00 max | 1.00 max | 0.030 max | 0.010 max | 24.00 – 26.00 | 3.00 – 4.00 | 6.00 – 8.00 | 0.20 – 0.30 | 57.61 min |
| Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32760 | 7.8 | 0.281 | 1350 | 2460 |
Grant Fittings is a leading supplier of Super Duplex Steel S32760 Pipe Fittings in Manila, Philippines. We offer an extensive range of Super Duplex Steel S32760 Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS |
| Super Duplex S32760 | 1.4410 | S32760 |
Super Duplex Steel S32760 Pipe Fittings from Grant Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Super Duplex Steel S32760 pipe fittings offer exceptional corrosion resistance, especially against pitting, crevice corrosion, and stress corrosion cracking, making them ideal for harsh environments like seawater, chemical processing, and oil and gas industries. They combine high strength and excellent toughness, ensuring reliable performance under extreme pressure and temperature conditions. With excellent weldability, these fittings are easy to fabricate, reducing installation time and costs. Their resistance to chloride-induced corrosion and superior mechanical properties enhance longevity, making them a cost-effective solution for demanding industrial applications.

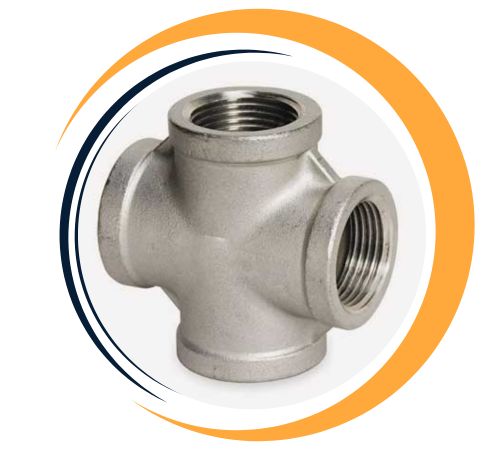

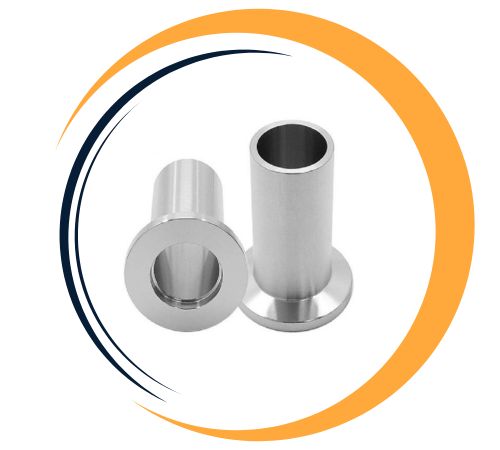

| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
| inch | mm | inch | Length (inch) | Center to End (inch) | Center to End (inch) | Lap Diameter (inch) | Long Length (inch) | Short Length (inch) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
Yes, custom sizes for Super Duplex Steel S32760 Pipe Fittings are available at Grant Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@grantfittings.com.
Super Duplex Steel S32760 Pipe Fittings are a go-to choice in industries that demand maximum corrosion resistance and mechanical strength. They shine in both offshore and onshore oil and gas operations, chemical and petrochemical plants, seawater desalination systems, and the pulp and paper industry. These fittings are designed to handle aggressive substances like brines, acids, and caustic solutions, ensuring durable, leak-proof connections. Their outstanding performance not only cuts down on maintenance costs but also boosts operational safety, providing dependable, long-lasting service in critical and challenging industrial piping systems.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
