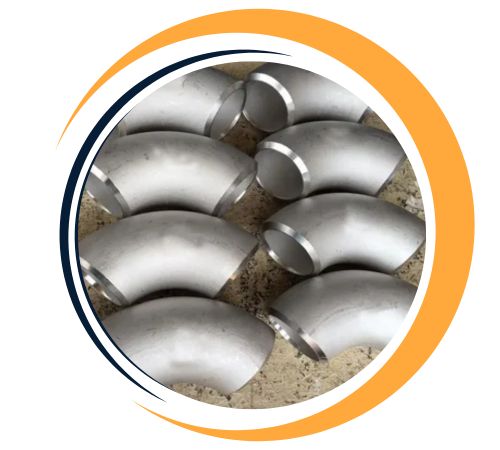

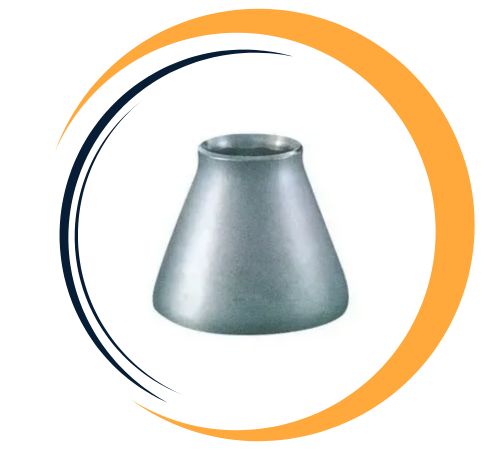

Grant Fittings is a reputable manufacturer and supplier of top-notch Monel Pipe Fittings, proudly based in Manila, Philippines. Renowned for their commitment to excellence in industrial piping solutions, Grant Fittings provides a wide array of Monel fittings, including elbows, tees, reducers, and couplings, all crafted to meet rigorous international standards. With a strong emphasis on durability, corrosion resistance, and performance, the company serves various sectors such as chemical processing, marine, oil and gas, and power generation. Grant Fittings is dedicated to ensuring timely delivery, competitive pricing, and a customer-centric approach, making it a go-to partner for Monel Pipe Fittings in the Philippines and beyond.
Specifications : ASTM B366 / ASME SB366
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : Seamless Butt Weld Fittings : 1/2″ – 10″ | Welded Butt Weld Fittings : 1/2″ – 48″
Schedule : SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Type : Seamless / ERW / Welded / Fabricated
Thickness :20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc.
The Monel Pipe Fittings offered by Grant Fittings in Manila are primarily made up of nickel (up to 67%) and copper, along with small amounts of iron, manganese, carbon, and silicon. This distinctive blend grants them remarkable resistance to corrosion, particularly in seawater and chemical environments. Monel alloys like Monel 400 and Monel K500 showcase excellent tensile strength, good ductility, and impressive mechanical properties, even in sub-zero temperatures. These fittings boast a high melting point (around 1300°C), making them perfect for high-pressure and high-temperature applications across various industrial settings.
| Grade | Ni | Fe | C | Mn | Si | Cu | Al | Ti | S |
|---|---|---|---|---|---|---|---|---|---|
| Monel 400 | 63.0- 70.00 max | 2.50 max | 0.3 max | 2.00 max | 0.50 max | Remainder | – | – | 0.024 max |
| Monel K500 | 63.0 min | 05 – 2 | 0.25 max | 1.5 max | 0.5 max | 27.0 – 33.0 | 2.3 – 3.15 | 0.35 – 0.85 | 0.010 max |
| Grade | Tensile (ksi) | .2% Yield (ksi) | Elongation % | Hardness (HRb) |
|---|---|---|---|---|
| 400 | 75 to 90 | 25 to 50 | 60 to 35 | 60 to 80 |
| K500 | Psi – 1,60,000 , MPa – 1100 | Psi – 1,15,000 , MPa – 790 | 20 % | – |
Grant Fittings is a leading supplier of Monel pipe fittings in Manila, Philippines. We offer an extensive range of Monel fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | UNS | WNR. | EN | JIS | GOST | AFNOR | BS |
|---|---|---|---|---|---|---|---|
| Monel 400 | N04400 | 2.4360 | NiCu30Fe | NW 4400 | MNCM 28-2,5-1,5 | NU-30M | NA 13 |
| Monel K500 | N05500 | 2.4375 | – | – | – | – | – |
Monel pipe fittings from Grant Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Grant Fittings’ Monel Pipe Fittings are widely utilized in industries that require reliable performance in extreme conditions. Their outstanding corrosion resistance makes them ideal for marine engineering, shipbuilding, and offshore oil drilling platforms. In the chemical and petrochemical industries, these fittings are essential for piping systems that transport highly corrosive fluids. They also find applications in power plants, heat exchangers, and the pulp and paper sector, where durability and resistance to aggressive media are crucial. Grant Fittings guarantees that its Monel Pipe Fittings adhere to the highest quality standards, delivering dependable solutions for critical and challenging applications throughout the Philippines.
Yes, custom sizes for Monel pipe fittings are available at Grant Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@grantfittings.com.
Monel pipe fittings, made from a high-strength nickel-copper alloy, are widely used in industries requiring resistance to corrosion, high temperatures, and harsh environments. Common applications include marine engineering, chemical processing, oil and gas, and power generation. These fittings are ideal for systems exposed to seawater, acidic environments, or high-pressure conditions. Their resistance to pitting, crevice corrosion, and stress corrosion cracking makes them suitable for critical applications such as heat exchangers, desalination plants, and aerospace components, ensuring long-term durability and reliability.
